LFP 3kWh Battery Pack 51.2V 60Ah

LFP 3kWh Battery Pack 51.2V 60Ah
Contact Now

3KWH BATTERY PACK

LFP 3kWh Battery Pack 51.2V 60Ah

3KWH BATTERY PACK
Contact Now
Builtin Battery 3kwh

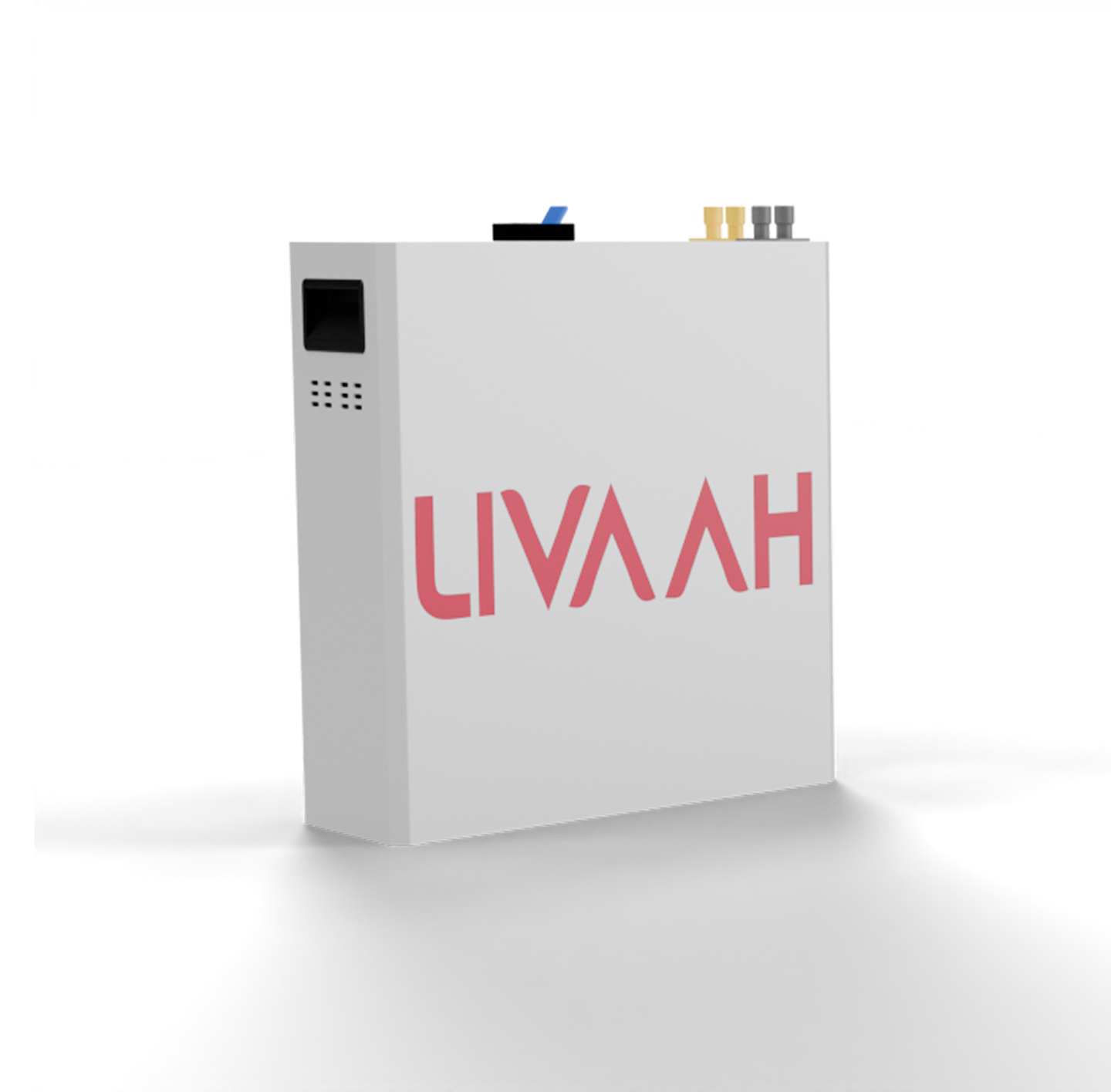

Livaah's 3kWh Stationary Battery Pack offers a high‑performance energy storage solution, ideal for residential, commercial, industrial, and telecom applications. This advanced Li‑Ion battery pack features a wall‑mount design, making it space‑efficient and easy to install while providing exceptional scalability and versatility.

This Battery pack comes with an integrated Battery Management System (BMS), representing a pinnacle of innovation in energy storage technology. The BMS ensures safety by preventing issues such as overcharging, overheating, and undercharging. It also helps extend the lifespan of the battery, ensuring reliable performance over time. Additionally, the 3kWh capacity can be expanded by stacking multiple units in series or parallel to achieve higher voltage and current output, making it suitable for various energy storage needs.

With a nominal voltage of 51.2V, a 3kWh capacity, and a cycle life of 1500 cycles, this battery pack ensures uninterrupted power and optimal performance across extreme temperatures (−20℃ to 55℃). Featuring compact dimensions (368 × 152 × 334 mm) and an IP20 protection rating, it’s easy to install, space‑efficient, and built for long‑term reliability.

features

Battery

Long battery life

Electricity-icon

Temperature protection

Chat-icon

Communication interface

Maintenance icon

Zero maintenance

Led icon

System LED

Wall Mount icon

Wall Mount

specifications

Capacity
3kWh
Operating Voltage
48V
Operating Current
60Ah
Standard Cycle Life
1500nos
Depth of Discharge
80%
Operating Temperature Range
-20 to 55°C
Dimensions
368 x 152 x 334 mm
IP Class
IP20
Communication Interface
CAN | RS485
Pack Charging Current
0.5-1C
Pack Discharging Current
0.5-1C
Warranty
1000 cycles
