Three phase hybrid inverter
please fill the form,we will contact you soon

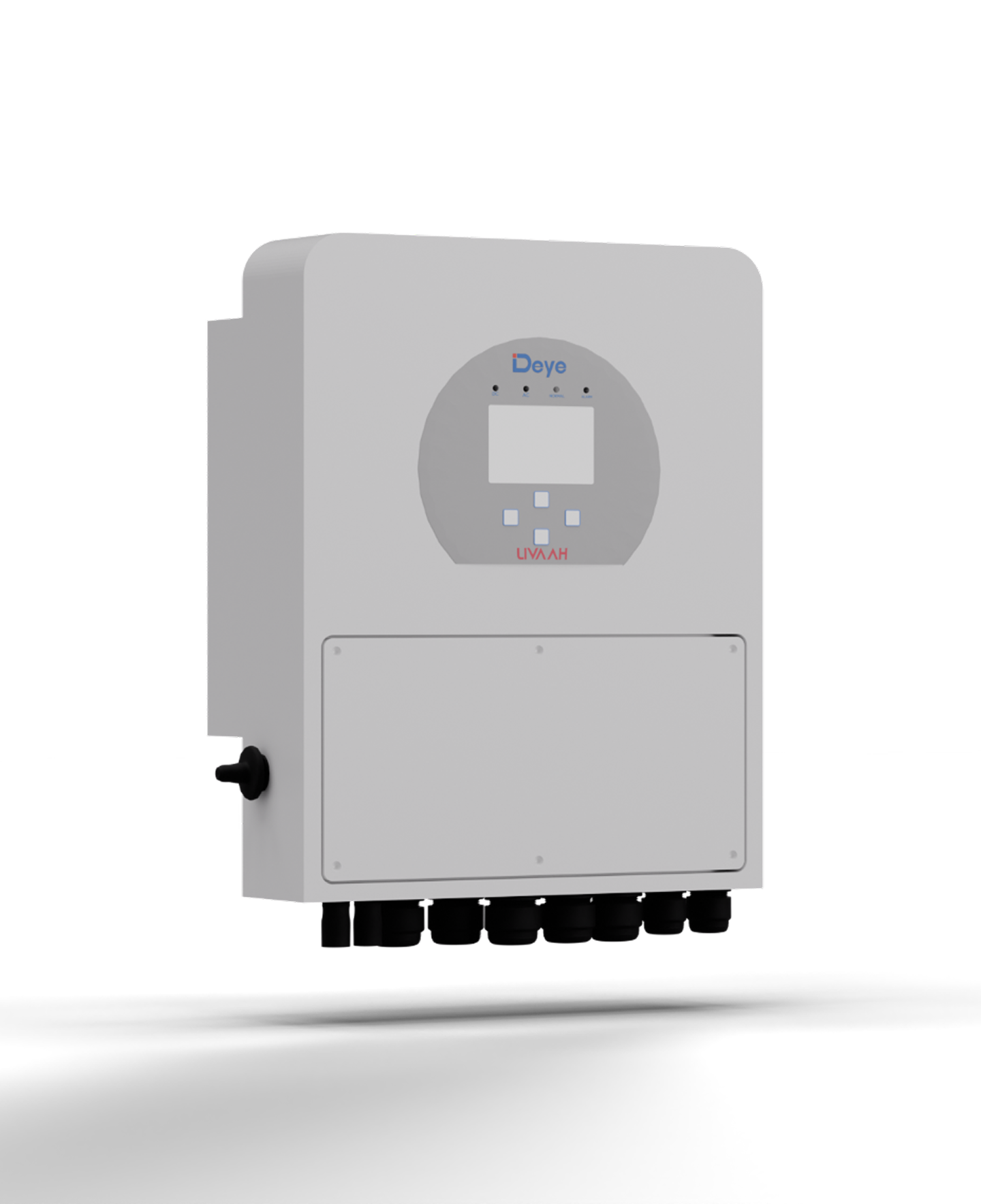

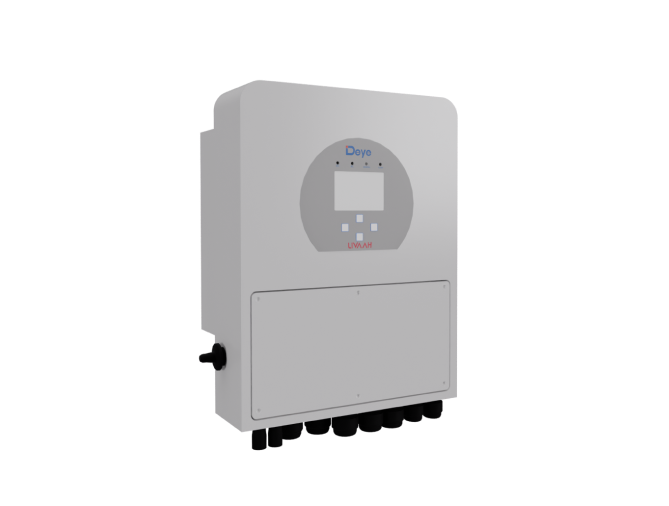

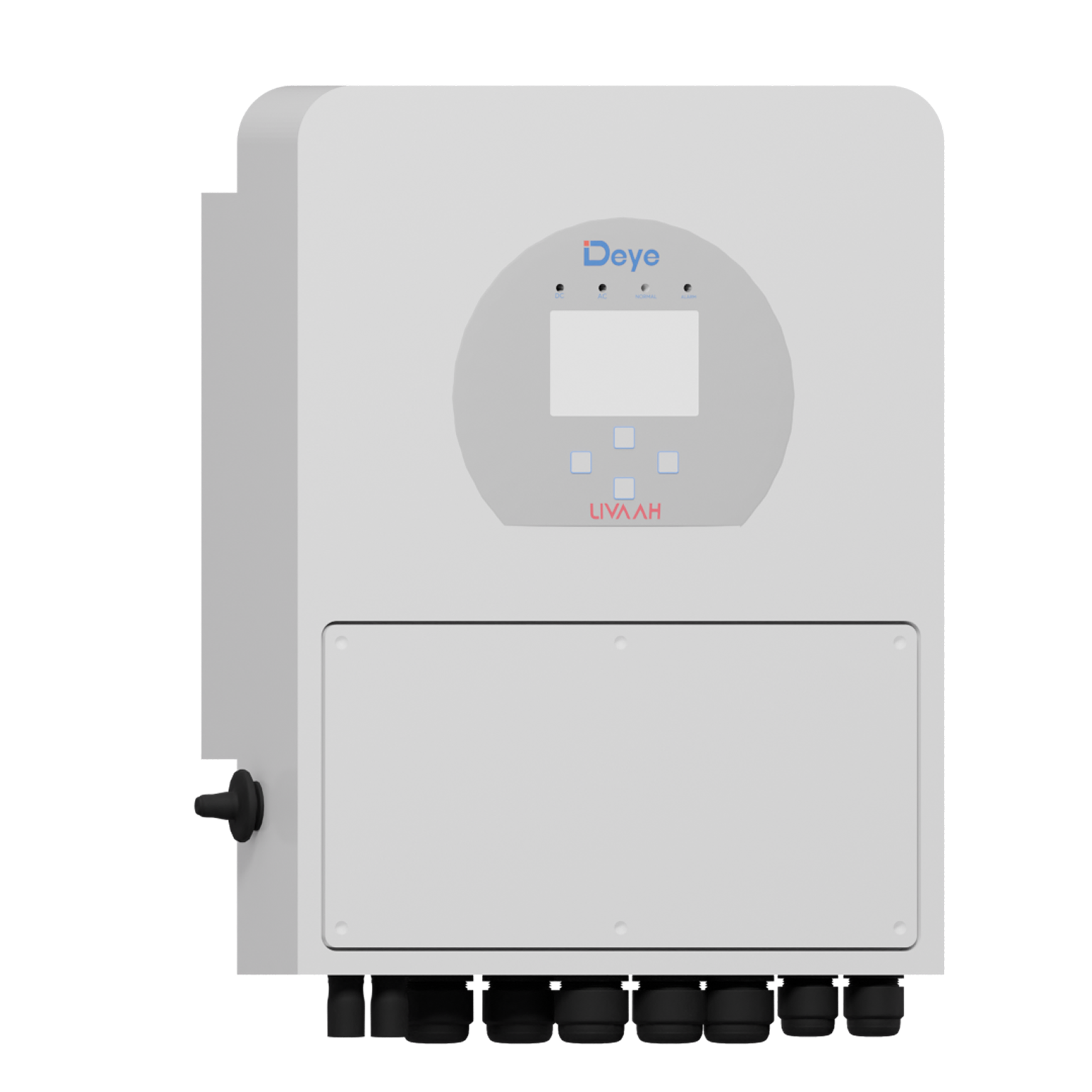

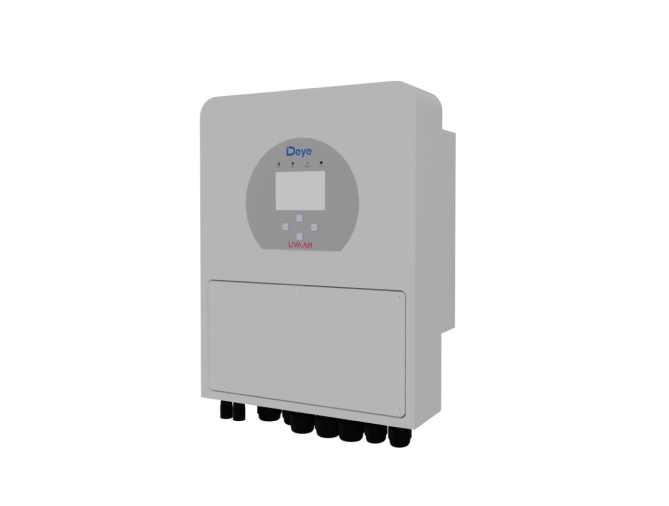

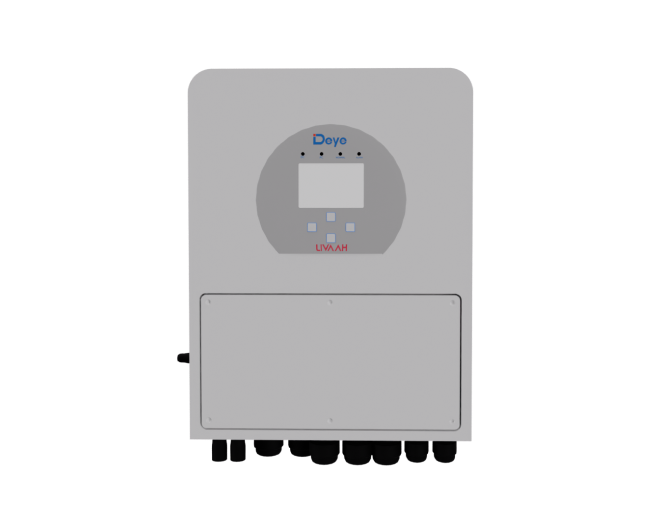

The Livaah Three-Phase Hybrid Inverter is a high-performance
power solution designed to meet the growing energy needs of
residential, industrial, and commercial
establishments. Available in capacities from 5kW to 25kW,
this advanced inverter integrates solar power, grid
electricity, and battery storage, ensuring seamless
power supply even during outages.
Built with intelligent energy management technology, this
inverter prioritizes solar energy, stores excess power in
batteries, and minimizes reliance on the
grid—resulting in significant energy savings and reduced
electricity bills.
features
AC-coupled for solar retrofit
High voltage battery, higher efficiency
Auto restart while AC is recovering.
Support storing energy from diesel generator
Max. charging/discharging current of 50A
6 time periods for battery charging/discharging
specifications
| SUN-5K-SG01 HP3-EU-AM2 |
SUN-6K-SG01 HP3-EU-AM2 |
SUN-8K-SG01 HP3-EU-AM2 |
SUN-10K-SG01 HP3-EU-AM2 |
SUN-12K-SG01 HP3-EU-AM2 |
SUN-15K-SG01 HP3-EU-AM2 |
SUN-20K-SG01 HP3-EU-AM2 |
SUN-25K-SG01 HP3-EU-AM2 |
|
|---|---|---|---|---|---|---|---|---|
| Battery Type | Lithium-ion | |||||||
| Max. PV Access Power (W) | 10000 | 12000 | 16000 | 20000 | 24000 | 30000 | 40000 | 50000 |
| Max. PV Input Power (W) | 8000 | 9600 | 12800 | 16000 | 19200 | 24000 | 32000 | 40000 |
| Rated AC Input/Output Active Power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 | 25000 |
| Peak Power (Off-Grid) (W) | 1.5 times of rated power, 10s | |||||||
| Max. Efficiency | 97.6% | |||||||
| MPPT Efficiency | >99% | |||||||
| Operating Temperature Range (C) | -40 to +60°C, >45°C Derating | |||||||
| Communication Interface | Rs485/RS232/CAN | |||||||
