5kW Hybrid Inverter & 5kWh Storage
Livaah Innovations is a pioneer in renewable energy and smart
storage solutions. We bring decades ofexpertise in energy
systems to develop cutting–edge inverters, battery packs,
and solar-poweredconsumer electronics.

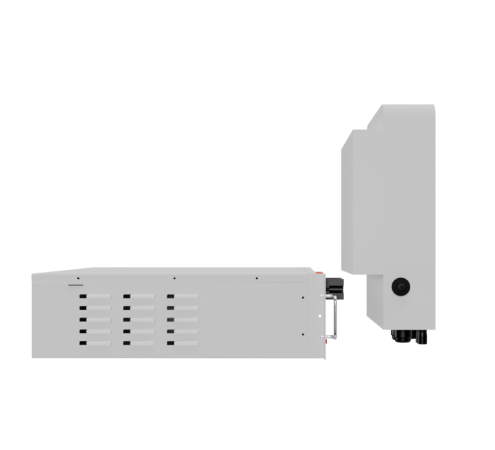

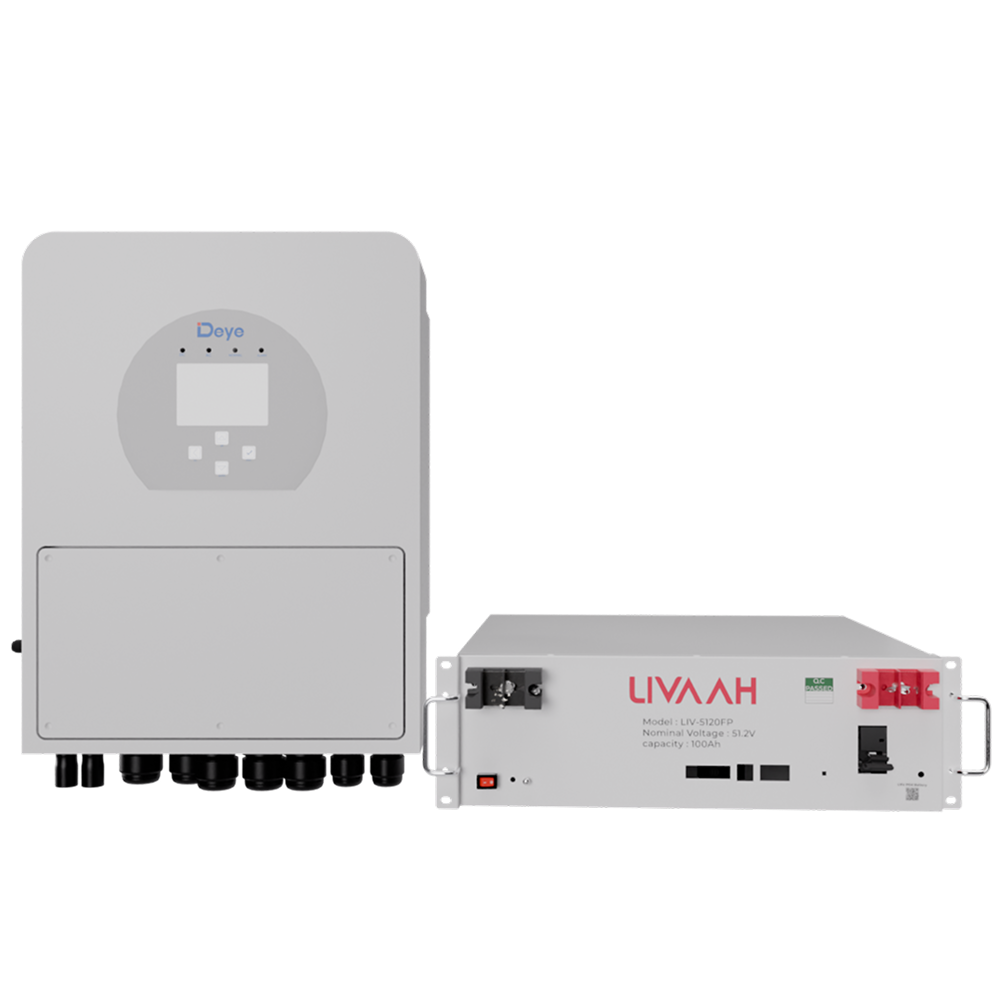

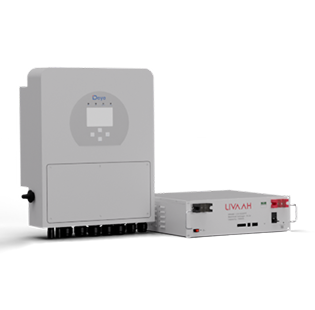

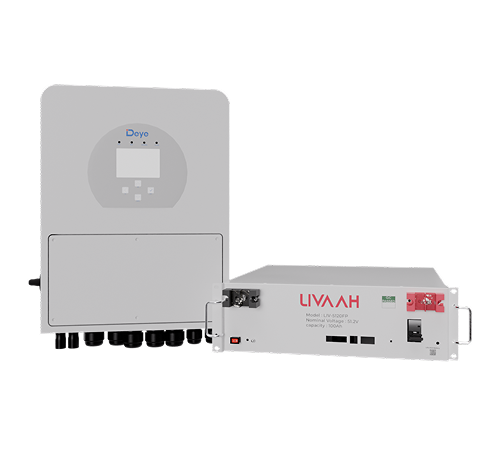

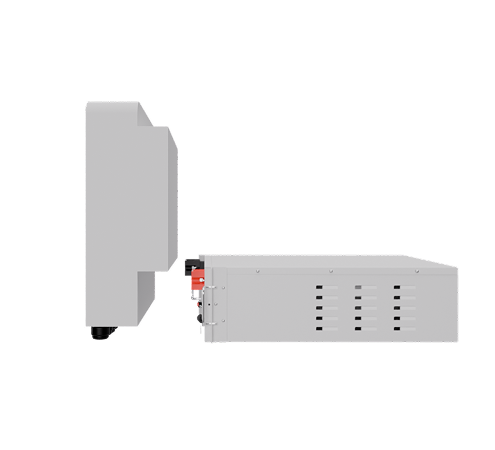

Livaah's 5kW Hybrid Energy Combo combines the 5kW Hybrid
Inverter, which efficiently manages power usage and grid
interaction, with the 5kWh Storage Battery, ensuring
uninterrupted backup for your essential devices. Together, they
deliver reliable, long-lasting, and efficient performance for
all your energy needs.
please fill the form,we will contact you soon
Payment Process
features
Touch LCD, IP65
140A charge/discharge
Diesel generator compatible
Low voltage safety
4000 Cycles
Battery Management System (BMS)
specifications
| Inverter | |
|---|---|
| Model | SUN-5K-SG04LP1-EU |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 120 |
| Max. Discharging Current (A) | >120 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Max. PV Access Power (W) | 10000 |
| MPPT Voltage Range (V) | 150-425 |
| Communication Interface | RS485/RS232/CAN |
| Max. Efficiency | 97.6% |
| Operating Temperature Range (°C) | -40 to +60 , >45 Derating |
| Battery | |
| Voltage & Capacity | 5.12kWh 100Ah |
| Max Charge & Discharge Current | 50A-100A |
| Standard Cycle Life | 4000 nos |
| Weight | ~46 |
| Dimensions | 440 x 440 x 130 mm |
